    Product Name : LFG 4-flutes Micro Grain Long Flute End Mills
    Product Description

    FEATURES:

    Helix angle 45°, less cutting drag, more effective working, best for working on stainless steel, high alloy steel, harden steel, and difficult - machine materials. Coated Tialn for maximum heat and wear resistance provide maximum hardness and fracture resistance.

    Product Introduction

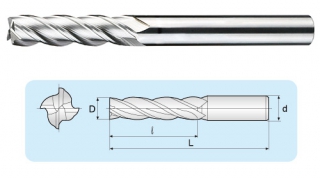

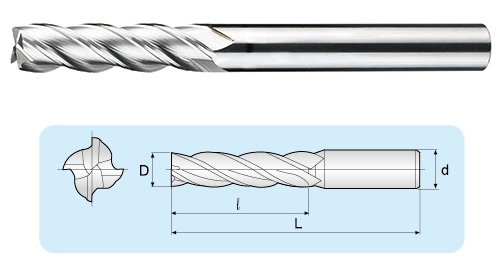

    Type No Diameter(D) Flute Length (l) O. A. L.(L) Shank Dia(d) Price
    LFG0101044 1.0 5.0 50 4 900
    LFG0151044 1.5 7.5 50 4 900
    LFG0201044 2.0 10 50 4 900
    LFG0251044 2.5 12.5 50 4 900
    LFG0301044 3.0 15.0 50 4 900
    LFG0352044 3.5 17.5 60 4 900
    LFG0402044 4.0 20.0 60 4 900
    LFG0453064 4.5 22.5 75 6 1080
    LFG0503064 5.0 25.0 75 6 1080
    LFG0553064 5.5 27.5 75 6 1080
    LFG0603064 6.0 30.0 75 6 1080
    LFG0654084 6.5 32.5 100 8 1260
    LFG0704084 7.0 35 100 8 1260
    LFG0754084 7.5 35 100 8 1260
    LFG0804084 8.0 35 100 8 1260
    LFG0854104 8.5 40 100 10 1675
    LFG0904104 9.0 40 100 10 1675
    LFG1004104 10.0 40 100 10 1675
    LFG1104124 11.0 50 100 12 2115
    LFG1204124 12.0 50 100 12 2115
    LFG1405164 14.0 60 150 16 6885
    LFG1605164 16.0 60 150 16 6885
    LFG2005204 20 60 150 20 9315



    Applicability Work Material
    ★ ★ ★ Steel,Carbon steel S15C
    ★ ★ Steel,Carbon steel S45C
    ★ Hardened S45C
      Steel,Carbon steel S75C
      Hardened S75C
    ★ ★ Low allow steel SCM, SNCM
      Hardened SCM, SNCM
      Hardened SCM, SNCM
      Hardened SCM, SNCM
    ★ High allow steel SKD,SKT,SKH
      Hardened SKD,SKT,SKH
      Stainless steel SUS403
      Stainless steel SUS403
      Stainless steel SUS304, SUS316
    ★ ★ ★ Cast iron
    ★ Nodular cast iron
      Exotic material
    ★ Aluminum
    ★ Aluminum alloy

    ★ ★ ★Excellent     ★ ★ Good     ★General
