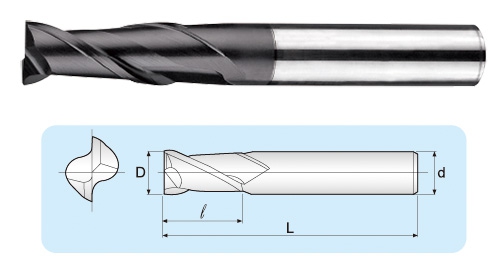

UGA-2-flutes Super Micro Grain End Mills
EnlargementProduct Introduction
| Type No | Diameter(D) | Flute Length (l) | O. A. L.(L) | Shank Dia(d) | Price |
| UGA0101042 | 1.0 | 2.5 | 50 | 4 | 550 |
| UGA0151042 | 1.5 | 4.0 | 50 | 4 | 550 |
| UGA0201042 | 2.0 | 5.0 | 50 | 4 | 550 |
| UGA0251042 | 2.5 | 6.5 | 50 | 4 | 550 |
| UGA0301042 | 3.0 | 7.5 | 50 | 4 | 550 |
| UGA0351042 | 3.5 | 9.0 | 50 | 4 | 550 |
| UGA0401042 | 4.0 | 10.0 | 50 | 4 | 550 |
| UGA0451062 | 4.5 | 11.5 | 50 | 6 | 635 |
| UGA0501062 | 5.0 | 12.5 | 50 | 6 | 635 |
| UGA0551062 | 5.5 | 14.0 | 50 | 6 | 635 |
| UGA0601062 | 6.0 | 15.0 | 50 | 6 | 635 |
| UGA0652082 | 6.5 | 16.5 | 60 | 8 | 1260 |
| UGA0702082 | 7.0 | 17.5 | 60 | 8 | 1260 |
| UGA0853102 | 7.5 | 19.0 | 60 | 8 | 1260 |
| UGA0903102 | 8.0 | 20.0 | 60 | 8 | 1260 |
| UGA0953102 | 8.5 | 21.5 | 75 | 10 | 1950 |
| UGA1003102 | 9.0 | 22.5 | 75 | 10 | 1950 |
| UGA1053122 | 10.0 | 24.0 | 75 | 10 | 1950 |
| UGA1103122 | 10.5 | 25.0 | 75 | 10 | 1950 |
| UGA1153122 | 11.0 | 27.0 | 75 | 12 | 2750 |
| UGA1203122 | 11.0 | 27.5 | 75 | 12 | 2750 |
| UGA1304162 | 11.5 | 29.0 | 75 | 12 | 2750 |
| UGA1404162 | 12.0 | 30.0 | 75 | 12 | 2750 |
| UGA1404162 | 13.0 | 32.5 | 100 | 16 | 6200 |
| UGA1504162 | 14.0 | 35.0 | 100 | 16 | 6200 |
| UGA1604162 | 15.0 | 37.5 | 100 | 16 | 6200 |
| UGA1604162 | 16.0 | 40.0 | 100 | 16 | 6200 |
| Applicability | Work Material | |
| ★ ★ ★ | Steel,Carbon steel | S15C |
| ★ ★ ★ | Steel,Carbon steel | S45C |
| ★ ★ | Hardened | S45C |
| ★ ★ | Steel,Carbon steel | S75C |
| ★ | Hardened | S75C |
| ★ ★ ★ | Low allow steel | SCM, SNCM |
| ★ ★ | Hardened | SCM, SNCM |
| ★ | Hardened | SCM, SNCM |
| ★ | Hardened | SCM, SNCM |
| ★ ★ ★ | High allow steel | SKD,SKT,SKH |
| ★ | Hardened | SKD,SKT,SKH |
| ★ ★ ★ | Stainless steel | SUS403 |
| ★ ★ ★ | Stainless steel | SUS403 |
| ★ ★ ★ | Stainless steel | SUS304, SUS316 |
| ★ ★ | Cast iron | |
| ★ ★ | Nodular cast iron | |
| ★ | Exotic material | |
| ★ | Aluminum | |
| ★ | Aluminum alloy | |
★ ★ ★Excellent ★ ★ Good ★General
