    Product Name : XGA 4-flutes Micro Grain End Mills
    Product Description

    FEATURES:

    Helix angle 45。，less cutting drag, more effective working, best for working on stainless steel, high alloy steel, harden steel, and difficult - machine materials. Coated Tialn for maximum heat and wear resistance provide maximum hardness and fracture resistance.

    Product Introduction

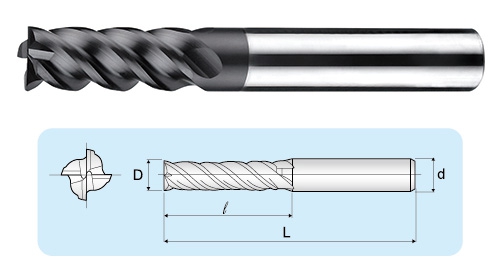

    Type No Diameter(D) Flute Length(l) O. A. L.(L) Shank Dia(d) Price
    XGA0101044 1.0 2.5 50 4 450
    XGA0151044 1.5 4.0 50 4 450
    XGA0201044 2.0 5.0 50 4 450
    XGA0251044 2.5 6.5 50 4 450
    XGA0301044 3.0 7.5 50 4 450
    XGA0351044 3.5 9.0 50 4 450
    XGA0401044 4.0 10.0 50 4 450
    XGA0451064 4.5 11.5 50 6 510
    XGA0501064 5.0 12.5 50 6 510
    XGA0551064 5.5 14.0 50 6 510
    XGA0601064 6.0 15.0 50 6 510
    XGA0652084 6.5 16.5 60 8 1010
    XGA0702084 7.0 17.5 60 8 1010
    XGA0752084 7.5 19.0 60 8 1010
    XGA0802084 8.0 20.0 60 8 1010
    XGA0853104 8.5 21.5 75 10 1560
    XGA0903104 9.0 22.5 75 10 1560
    XGA0953104 9.5 24.0 75 10 1560
    XGA1003104 10.0 25.0 75 10 1560
    XGA1053124 10.5 26.5 75 12 2100
    XGA1103124 11.0 27.5 75 12 2100
    XGA1153124 11.5 29.0 75 12 2100
    XGA1203124 12.0 30.0 75 12 2100
    XGA1304164 13.0 32.5 100 16 5340
    XGA1404164 14.0 35.0 100 16 5340
    XGA1504164 15.0 37.5 100 16 5340
    XGA1604164 16.0 40.0 100 16 5340
    XGA1804204 18.0 45.0 100 20 7440
    XGA2004204 20.0 50.0 100 20 7440



    Applicability Work Material
    ★ ★ ★ Steel,Carbon steel S15C
    ★ ★ ★ Steel,Carbon steel S45C
    ★ ★ Hardened S45C
    ★ ★ Steel,Carbon steel S75C
    ★ Hardened S75C
    ★ ★ ★ Low allow steel SCM, SNCM
    ★ ★ Hardened SCM, SNCM
    ★ Hardened SCM, SNCM
    ★ Hardened SCM, SNCM
    ★ ★ ★ High allow steel SKD,SKT,SKH
    ★ Hardened SKD,SKT,SKH
    ★ ★ ★ Stainless steel SUS403
    ★ ★ ★ Stainless steel SUS403
    ★ ★ ★ Stainless steel SUS304, SUS316
    ★ ★ Cast iron
    ★ ★ Nodular cast iron
    ★ Exotic material
    ★ Aluminum
    ★ Aluminum alloy

    ★ ★ ★Excellent     ★ ★ Good     ★General
