LBHA 4刃超微粒深沟圆头立铣刀
    点小图放大图
    产品名称 : LBHA 4刃超微粒深沟圆头立铣刀
    产品描述

    产品特色:

    刀刃区近于镜面,刃口表面光滑,排屑顺畅,刀具寿命长,精度也提高。

    詢價
    产品介紹

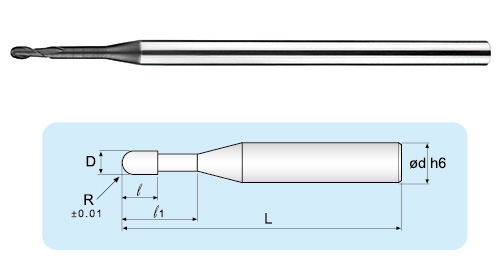

    型号 R角 刃长 (l) 有效长(l1) 全长(L) 柄径 牌价
    LBHA020005454 0.2 0.4 0.5 45 4 715
    LBHA020010454 0.2 0.4 1.0 45 4 715
    LBHA020015454 0.2 0.4 1.5 45 4 715
    LBHA020020454 0.2 0.4 2 45 4 715
    LBHA020030454 0.2 0.4 3 45 4 715
    LBHA020040454 0.2 0.4 4 45 4 715
    LBHA020050454 0.2 0.4 5 45 4 810
    LBHA025010454 0.25 0.5 1 45 4 655
    LBHA025020454 0.25 0.5 2 45 4 655
    LBHA025030454 0.25 0.5 3 45 4 655
    LBHA025040454 0.25 0.5 4 45 4 655
    LBHA025050454 0.25 0.5 5 45 4 655
    LBHA025060454 0.25 0.5 6 45 4 765
    LBHA025080454 0.25 0.5 8 45 4 765
    LBHA030010454 0.3 0.6 1 45 4 655
    LBHA030020454 0.3 0.6 2 45 4 655
    LBHA030030454 0.3 0.6 3 45 4 655
    LBHA030040454 0.3 0.6 4 45 4 655
    LBHA030050454 0.3 0.6 5 45 4 655
    LBHA030060454 0.3 0.6 6 45 4 655
    LBHA060080454 0.3 0.6 8 45 4 765
    LBHA030100454 0.3 0.6 10 45 4 765
    LBHA040020454 0.4 0.8 2 45 4 605
    LBHA040040454 0.4 0.8 4 45 4 605
    LBHA040060454 0.4 0.8 6 45 4 605
    LBHA040080454 0.4 0.8 8 45 4 605
    LBHA040100454 0.4 0.8 10 45 4 765
    LBHA050030454 0.5 1.0 3 45 4 555
    LBHA050040454 0.5 1.0 4 45 4 555
    LBHA050050454 0.5 1.0 5 45 4 555
    LBHA050060454 0.5 1.0 6 45 4 555
    LBHA050070454 0.5 1.0 7 45 4 555
    LBHA050080454 0.5 1.0 8 45 4 555
    LBHA050100454 0.5 1.0 10 45 4 555
    LBHA050120454 0.5 1.0 12 45 4 585
    LBHA050140504 0.5 1.0 14 50 4 585
    LBHA050160504 0.5 1.0 16 50 4 630
    LBHA150200554 0.5 1.0 20 55 4 665
    LBHA060040454 0.6 1.2 4 45 4 555
    LBHA060060454 0.6 1.2 6 45 4 555
    LBHA060080454 0.6 1.2 8 45 4 555
    LBHA060100454 0.6 1.2 10 45 4 555
    LBHA060120454 0.6 1.2 12 45 4 585
    LBHA070080454 0.7 1.4 8 45 4 555
    LBHA070120454 0.7 1.4 12 45 4 585
    LBHA070160504 0.7 1.4 16 50 4 630
    LBHA075040454 0.75 1.5 4 45 4 555
    LBHA075060454 0.75 1.5 6 45 4 555
    LBHA075080454 0.75 1.5 8 45 4 555
    LBHA075100454 0.75 1.5 10 45 4 555
    LBHA075120454 0.75 1.5 12 45 4 585
    LBHA075140504 0.75 1.5 14 50 4 585
    LBHA075160504 0.75 1.5 16 50 4 630
    LBHA075200554 0.75 1.5 20 55 4 630
    LBHA080080454 0.8 1.6 8 45 4 555
    LBHA080120454 0.8 1.6 12 45 4 585
    LBHA080160504 0.8 1.6 16 50 4 630
    LBHA080200554 0.8 1.6 20 55 4 630
    LBHA090080454 0.9 1.8 8 45 4 555
    LBHA090120454 0.9 1.8 12 45 4 585
    LBHA090160504 0.9 1.8 16 50 4 630
    LBHA090200554 0.9 1.8 20 55 4 630
    LBHA100040454 1 2 4 45 4 525
    LBHA100060454 1 2 6 45 4 525
    LBHA100080454 1 2 8 45 4 525
    LBHA100100454 1 2 10 45 4 525
    LBHA100120504 1 2 12 50 4 525
    LBHA100140504 1 2 14 50 4 555
    LBHA100160504 1 2 16 50 4 555
    LBHA100180554 1 2 18 55 4 585
    LBHA100200554 1 2 20 55 4 585
    LBHA100220604 1 2 22 60 4 585
    LBHA100260704 1 2 26 70 4 680
    LBHA100300704 1 2 30 70 4 680
    LBHA125080506 1.25 2.5 8 50 6 790
    LBHA125100506 1.25 2.5 10 50 6 790
    LBHA125160556 1.25 2.5 16 55 6 790
    LBHA125200606 1.25 2.5 20 60 6 850
    LBHA150080506 1.5 3 8 50 6 790
    LBHA150100506 1.5 3 10 50 6 790
    LBHA150120506 1.5 3 12 50 6 790
    LBHA150140556 1.5 3 14 55 6 790
    LBHA150160556 1.5 3 16 55 6 790
    LBHA150180606 1.5 3 18 60 6 850
    LBHA150200606 1.5 3 20 60 6 850
    LBHA150260706 1.5 3 26 70 6 900
    LBHA150300706 1.5 3 30 70 6 900
    LBHA150360806 1.5 3 36 80 6 995
    LBHA200100606 2 4 10 60 6 790
    LBHA200120606 2 4 12 60 6 790
    LBHA200160606 2 4 16 60 6 790
    LBHA200200656 2 4 20 65 6 850
    LBHA200260706 2 4 26 70 6 900
    LBHA200300706 2 4 30 70 6 900
    LBHA200360806 2 4 36 80 6 995
    LBHA200400906 2 4 40 90 6 1195
    LBHA200460906 2 4 46 90 6 1195
    LBHA200500106 2 4 50 100 6 1275
    LBHA250160606 2.5 5 16 60 4 790
    LBHA250200606 2.5 5 20 60 4 850
    LBHA250260706 2.5 5 26 70 4 850
    LBHA250300806 2.5 5 30 80 4 900
    LBHA250360806 2.5 5 36 80 4 995
    LBHA300200806 3 6 20 80 4 995
    LBHA300300906 3 6 30 90 4 1195
    LBHA300400106 3 6 40 100 4 1275
    LBHA300500116 3 6 50 110 6 1275



    适用性 被削刚材
    ★ ★ ★ 钢、碳钢 S15C
    ★ ★ ★ 钢、碳钢 S45C
    ★ ★ 钢、碳钢 S45C 硬化处理
    钢、碳钢 S75C
      钢、碳钢 S75C 硬化处理
    ★ ★ ★ 低合金钢 SCM, SNCM
    低合金钢 SCM, SNCM 硬化处理
      低合金钢 SCM, SNCM 硬化处理
      低合金钢 SCM, SNCM 硬化处理
    ★ ★ 高合金钢 SKD,SKT,SKH
      高合金钢 SKD,SKT,SKH 硬化处理
    不锈钢 SUS403
    不锈钢 SUS403
    不锈钢 SUS304, SUS316
    ★ ★ ★ 铸铁
    球墨铸铁
      难削材料 耐热合金、超合金

    铝合金

    ★ ★ ★极佳     ★ ★ 佳     尚可
