TGA 2刃超微粒斜度立銑刀
    點小圖放大圖
    產品名稱 : TGA 2刃超微粒斜度立銑刀
    產品描述

    產品特色:

    刀刃區近於鏡面,刃口表面光滑,排屑順暢,刀具壽命長,精度也提高。

    詢價
    產品介紹

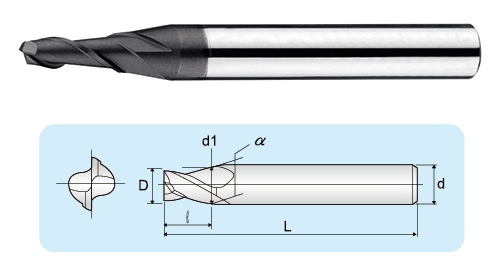

    型號 先端徑(D) 刃長 (l) 斜角(⍺) 粗端徑(d1) 全長 (L) 柄徑 (d) 牌價
    TGA005051042 0.5 2 30' 0.6 50 4 1380
    TGA005101042 0.5 2 1° 0.5 50 4 1380
    TGA005151042 0.5 2 1°30' 0.5 50 4 1380
    TGA005301042 0.5 2 3° 0.6 50 4 1380
    TGA005251042 0.5 2 2°30' 0.6 50 4 1380
    TGA005301042 0.5 2 3° 0.5 50 4 1380
    TGA005501042 0.5 2 5° 0.6 50 4 1380
    TGA005701042 0.5 2 7° 0.5 50 4 1650
    TGA0051001042 0.5 2 10° 0.6 50 4 1650
    TGA010051042 1.0 4 30' 1.7 50 4 980
    TGA010101042 1.0 4 1° 1.14 50 4 980
    TGA010151042 1.0 4 1°30' 1.21 50 4 980
    TGA010201042 1.0 4 2° 1.28 50 4 980
    TGA010251042 1.0 4 2°30' 1.35 50 4 980
    TGA010301042 1.0 4 3° 1.42 50 4 980
    TGA010501042 1.0 4 5° 1.70 50 4 1280
    TGA010701042 1.0 4 7° 1.98 50 4 1280
    TGA015051042 1.5 5 30' 1.59 50 4 980
    TGA015101042 1.5 5 1° 1.67 50 4 980
    TGA015151042 1.5 5 1°30' 1.76 50 4 980
    TGA015201042 11.5 5 2° 1.85 50 4 980
    TGA015251042 1.5 5 2°30' 1.93 50 4 980
    TGA015301042 1.5 5 3° 2.02 50 4 980
    TGA015501042 1.5 5 5° 2.37 50 4 1280
    TGA015701042 1.5 5 7° 2.72 50 4 1280
    TGA0151001042 1.5 5 10° 3.26 50 4 1280
    TGA020051042 2.0 6 30' 2.10 50 4 980
    TGA020101042 2.0 6 1° 2.21 50 4 980
    TGA020151042 2.0 6 1°30' 2.31 50 4 980
    TGA020201042 2.0 6 2° 2.41 50 4 980
    TGA020251042 2.0 6 2°30' 2.52 50 4 980
    TGA020301042 2.0 6 3° 2.62 50 4 980
    TGA020501042 2.0 6 5° 3.05 50 4 1280
    TGA020701042 2.0 6 7° 3.47 50 4 1280
    TGA0201001042 2.0 6 10° 4.12 50 4 1280
    TGA025051042 2.5 8 30' 2.64 50 4 980
    TGA025101042 2.5 8 1° 2.71 50 4 980
    TGA025151042 2.5 8 1°30' 2.91 50 4 980
    TGA025201042 2.5 8 2° 3.05 50 4 980
    TGA025251042 2.5 8 2°30' 3.20 50 4 1280
    TGA025301042 2.5 8 3° 3.33 50 4 1280
    TGA025501042 2.5 8 5° 3.90 50 4 1280
    TGA025701062 2.5 8 7° 4.46 50 6 980
    TGA0251001062 2.5 8 10° 5.32 50 6 980
    TGA030051062 3.0 10 30' 3.17 50 6 980
    TGA030101062 3.0 10 1° 3.35 50 6 980
    TGA030151062 3.0 10 1°30' 3.52 50 6 950
    TGA030201062 3.0 10 2° 3.69 50 6 950
    TGA030251062 3.0 10 2°30' 3.87 50 6 980
    TGA030301062 3.0 10 3° 4.05 50 6 980
    TGA030501062 3.0 10 5° 4.75 50 6 1280
    TGA030701062 3.0 10 7° 5.45 50 6 1580
    TGA0301001062 3.0 10 10° 6.53 50 4 1780
    TGA040051062 4.0 15 30' 4.26 50 6 980
    TGA040101062 4.0 15 1° 4.52 50 6 980
    TGA040151062 4.0 15 1°30' 4.79 50 6 980
    TGA040201062 4.0 15 2° 5.04 50 6 980
    TGA040251062 4.0 15 2°30' 5.31 50 6 980
    TGA040301062 4.0 15 3° 5.57 50 6 980
    TGA040501062 4.0 15 5° 6.62 50 6 1580
    TGA040702062 4.0 15 7° 7.68 60 6 1780
    TGA050052062 5.0 20 30' 5.34 60 6 1380
    TGA050102062 5.0 20 1° 5.70 60 6 1380
    TGA050152062 5.0 20 1°30' 6.04 60 6 1380
    TGA050202062 5.0 20 2° 6.39 60 6 1380
    TGA050252062 5.0 20 2°30' 6.74 60 6 1380
    TGA050302062 5.0 20 3° 7.10 60 6 1380
    TGA050503062 5.0 20 5° 8.50 70 6 1880
    TGA050703062 5.0 20 7° 9.91 70 6 2080
    TGA060051062 6.0 20 30' 6.35 60 6 1380
    TGA060101062 6.0 20 1° 6.70 60 6 1380
    TGA060152062 6.0 20 1°30' 7.05 60 6 1380
    TGA060202062 6.0 20 2° 7.40 60 6 1380
    TGA060252062 6.0 20 2°30' 7.75 60 6 1780
    TGA060302062 6.0 20 3° 8.10 60 8 1780
    TGA060505082 6.0 20 5° 9.50 60 8 2080
    TGA080053082 8.0 25 30' 8.44 70 8 2080
    TGA080103082 8.0 25 1° 8.87 70 8 2080
    TGA080153082 8.0 25 1°30' 9.31 70 8 2080
    TGA080203082 8.0 2 2° 9.74 70 8 2080
    TGA080253102 8.0 25 2°30' 10.18 70 10 2880
    TGA08302102 8.0 25 3° 10.62 70 10 2880
    TGA08503122 8.0 25 5° 12.37 90 12 3280
    TGA10053102 10.0 2 30' 10.61 90 10 2880
    TGA10103102 10.0 35 1° 11.22 90 10 2880
    TGA10153102 10.0 35 1°30' 11.83 90 10 2880
    TGA10203122 10.0 35 2° 12.44 90 12 3580
    TGA10253122 10.0 35 2°30' 13.06 90 12 3880
    TGA10503162 10.0 35 5° 16.12 115 16 5280



    適用性 被削剛材
    ★ ★ ★ 鋼、碳鋼 S15C
    ★ ★ ★ 鋼、碳鋼 S45C
    ★ ★ 鋼、碳鋼 S45C 硬化處理
    鋼、碳鋼 S75C
      鋼、碳鋼 S75C 硬化處理
    ★ ★ ★ 低合金鋼 SCM, SNCM
    低合金鋼 SCM, SNCM 硬化處理
      低合金鋼 SCM, SNCM 硬化處理
      低合金鋼 SCM, SNCM 硬化處理
    ★ ★ 高合金鋼 SKD,SKT,SKH
      高合金鋼 SKD,SKT,SKH 硬化處理
    不鏽鋼 SUS403
    不鏽鋼 SUS403
    不鏽鋼 SUS304, SUS316
    ★ ★ ★ 鑄鐵
    球墨鑄鐵
      難削材料 耐熱合金、超合金

    鋁合金

    ★ ★ ★極佳     ★ ★ 佳     尚可
