BC 2-Flutes Micro Grain Ball End Mills

BC 2-Flutes Micro Grain Ball End Mills
    Enlargement

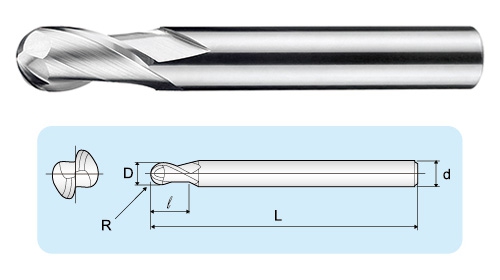

    Product Name : BC 2-Flutes Micro Grain Ball End Mills
    Product Description

    FEATURES:

    Generally used on wide range of every kind machining. With benefits of fracture resistance and strong edge.

    Product Introduction

    Type No Diameter(D) Flute Length(l) O. A. L.(L) Shank Dia(d) Price
    BC0101042 0.5 R 2 50 4 435
    BC0151042 0.75 R 3 50 4 435
    BC0201042 1 R 4 50 4 435
    BC0251042 1.25 R 5 50 4 435
    BC0301042 1.5 R 6 50 4 435
    BC0351042 1.75 R 7 50 4 435
    BC0401042 2 R 8 50 4 435
    BC0451062 2.25 R 9 50 6 475
    BC0501062 2.5 R 10 50 6 475
    BC0551062 2.75 R 11 50 6 475
    BC0601062 3R 12 50 6 475
    BC0652082 3.25 R 13 60 8 855
    BC0702082 3.5 R 14 60 8 855
    BC0752082 3.75 R 15 60 8 855
    BC0802082 4 R 16 60 8 855
    BC0903102 4.5 R 18 75 10 1260
    BC1003102 5R 20 75 10 1260
    BC1103122 5.5 R 22 75 12 1665
    BC1203122 6R 24 75 12 1665
    BC1404162 7R 28 100 16 5400
    BC1604162 8 R 32 100 16 5400
    BC1804202 9R 36 100 20 7200
    BC2004202 10 R 40 100 20 7200
    BC2505252 12.5 R 50 150 25 -



    Applicability Work Material
    ★ ★ ★ Steel,Carbon steel S15C
    ★ ★ Steel,Carbon steel S45C
    ★ Hardened S45C
    ★ ★ Steel,Carbon steel S75C
      Hardened S75C
    ★ ★ Low allow steel SCM, SNCM
      Hardened SCM, SNCM
      Hardened SCM, SNCM
      Hardened SCM, SNCM
    ★ High allow steel SKD,SKT,SKH
      Hardened SKD,SKT,SKH
      Stainless steel SUS403
      Stainless steel SUS403
      Stainless steel SUS304, SUS316
    ★ ★ ★ Cast iron
    ★ Nodular cast iron
      Exotic material
    ★ Aluminum
    ★ Aluminum alloy

    ★ ★ ★Excellent     ★ ★ Good     ★General
