BC 4-Flutes Micro Grain Ball End Mills

BC 4-Flutes Micro Grain Ball End Mills
    Enlargement
    Product Name : BC 4-Flutes Micro Grain Ball End Mills
    Product Description

    FEATURES:

    Generally used on wide range of every kind machining. With benefits of fracture resistance and strong edge. Coated Tialn for maximum heat and wear resistance. Provide maximum hardness and fracture

    Product Introduction

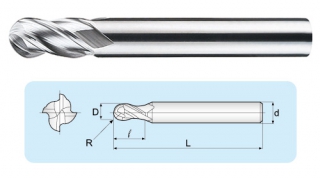

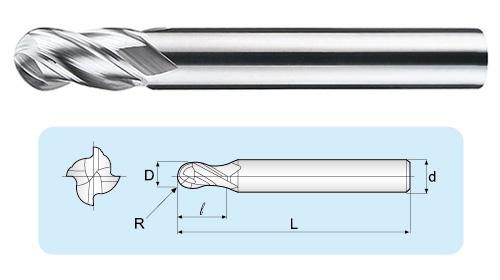

    Type No Diameter(D) Flute Length(l) O. A. L.(L) Shank Dia(d) Price
    BC0101044 0.5 R 2 50 4 490
    BC0151044 0.75 R 3 50 4 490
    BC0201044 1.0 R 4 50 4 490
    BC0251044 1.25 R 5 50 4 490
    BC0301044 1.5 R 6 50 4 490
    BC0351044 1.75 R 7 50 4 490
    BC0401044 2.0 R 8 50 4 540
    BC0451064 2.25 R 9 50 6 540
    BC0501064 2.5 R 10 50 6 540
    BC0551064 2.75 R 11 50 6 540
    BC0601064 3.0 R 12 50 6 970
    BC0652084 3.25 R 13 60 8 970
    BC0702084 3.5 R 14 60 8 970
    BC0752084 3.75 R 15 60 8 970
    BC0802084 4.0 R 16 60 8 1420
    BC0903104 4.5 R 18 75 10 1420
    BC1003104 5.0 R 20 75 10 1880
    BC1103124 5.5 R 22 75 12 1880
    BC1203124 6.0 R 24 75 12 2085
    BC1404164 7.0 R 28 100 16 6070
    BC1604164 8.0 R 32 100 16 6070
    BC1804204 9.0 R 36 100 20 8100
    BC2004204 10.0 R 40 100 20 8100
    BC2505254 12.5 R 50 150 25 -



    Applicability Work Material
    ★ ★ ★ Steel,Carbon steel S15C
    ★ ★ Steel,Carbon steel S45C
    ★ Hardened S45C
      Steel,Carbon steel S75C
      Hardened S75C
    ★ ★ Low allow steel SCM, SNCM
      Hardened SCM, SNCM
      Hardened SCM, SNCM
      Hardened SCM, SNCM
    ★ High allow steel SKD,SKT,SKH
      Hardened SKD,SKT,SKH
      Stainless steel SUS403
      Stainless steel SUS403
      Stainless steel SUS304, SUS316
    ★ ★ ★ Cast iron
    ★ Nodular cast iron
      Exotic material
    ★ Aluminum
    ★ Aluminum alloy

    ★ ★ ★Excellent     ★ ★ Good     ★General
