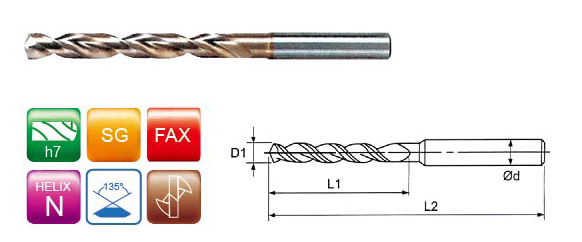

    Product Name : SG-ES DRILLS

    Tool Diameter D1 Flute Length L1 Overall Length L2 Shank Diameter ⌀d Tool Diameter D1 Flute Length L1 Overall Length L2 Shank Diameter ⌀d
    2.0 24 56 3 5.8 57 99 6
    2.1 24 56 3 5.9 57 99 6
    2.2 25 56 3 6.0 57 99 8
    2.3 25 56 3 6.1 63 107 8
    2.4 30 61 3 6.2 63 107 8
    2.5 30 61 3 6.3 63 107 8
    2.6 30 61 3 6.4 63 107 8
    2.7 33 64 3 6.5 63 107 8
    2.8 33 64 3 6.6 63 107 8
    2.9 33 64 3 6.7 63 107 8
    3.0 33 64 3 6.8 69 113 8
    3.1 36 68 4 6.9 69 113 8
    3.2 36 68 4 7.0 69 113 8
    3.3 36 68 4 7.1 69 113 8
    3.4 39 71 4 7.2 69 113 8
    3.5 39 71 4 7.3 69 113 8
    3.6 39 71 4 7.4 69 113 8
    3.7 39 71 4 7.5 69 113 8
    3.8 43 75 4 7.6 75 119 8
    3.9 43 75 4 7.7 75 119 8
    4.0 43 75 4 7.8 75 119 8
    4.1 43 85 6 7.9 75 119 8
    4.2 43 85 6 8.0 75 119 8
    4.3 47 89 6 8.1 75 125 10
    4.4 47 89 6 8.2 75 125 10
    4.5 47 89 6 8.3 75 125 10
    4.6 47 89 6 8.4 75 125 10
    4.7 47 89 6 8.5 75 125 10
    4.8 52 94 6 8.6 81 131 10
    4.9 52 94 6 8.7 81 131 10
    5.0 52 94 6 8.8 81 131 10
    5.1 52 94 6 8.9 81 131 10
    5.2 52 94 6 9.0 81 131 10
    5.3 52 94 6 9.1 81 131 10
    5.4 57 99 6 9.2 81 131 10
    5.5 57 99 6 9.3 81 131 10
    5.6 57 99 6 9.4 81 131 10
    5.7 57 99 6 9.5 81 131 10

    Tool Diameter D1 Flute Length L1 Overall Length L2 Shank Diameter ⌀d Tool Diameter D1 Flute Length L1 Overall Length L2 Shank Diameter ⌀d
    9.6 87 137 10 15.0 114 180 20
    9.7 87 137 10 15.5 120 185 20
    9.8 87 137 10 16.0 120 185 20
    9.9 87 137 10 16.5 125 189 20
    10.0 87 137 10 17.0 125 189 20
    10.1 87 144 12 17.5 130 194 20
    10.2 87 144 12 18.0 130 194 20
    10.3 87 144 12 18.5 135 198 20
    10.4 87 144 12 19.0 135 208 25
    10.5 87 144 12 19.5 140 210 25
    10.6 87 144 12 20.2 140 210 25
    10.7 94 151 12 20.5 145 214 25
    10.8 94 151 12 21.0 145 214 25
    10.9 94 151 12 21.5 150 218 25
    11.0 94 151 12 22.0 150 218 25
    11.1 94 151 12 22.5 155 223 25
    11.2 94 151 12 23.0 155 223 25
    11.3 94 151 12 23.5 155 223 25
    11.4 94 151 12 24.0 160 237 32
    11.5 94 151 12 24.5 160 237 32
    11.6 94 151 12 25.0 165 241 32
    11.7 94 151 12 25.5 165 241 32
    11.8 94 151 12 26.0 165 241 32
    11.9 101 158 12 26.5 165 241 32
    12.0 101 158 12 27.0 170 245 32
    12.1 101 158 12 27.5 170 245 32
    12.2 101 158 12 28.0 170 245 32
    12.3 101 158 12 28.5 175 248 32
    12.4 101 158 12 29.0 175 248 32
    12.5 101 158 12 29.5 175 248 32
    12.6 101 158 12 30.3 175 248 32
    12.7 101 158 12 30.5 180 252 32
    12.8 101 158 12 31.0 180 252 32
    12.9 101 158 12 31.5 180 252 32
    13.0 101 158 12 32.0 185 255 32
    13.5 108 168 16
    14.0 108 168 16
    14.5 114 173 16

    m/m
