TTGN Tseries Spiral Point Tap

TTGN Tseries Spiral Point Tap
    Enlargement
    Product Name :

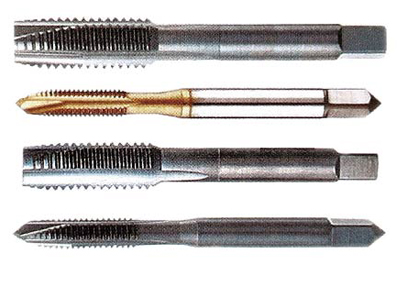

    ● TGN TTGN Tseries Spiral Point Tap

    ● TGN-TiN TSeries鍍鈦先端絲攻

    ● TGN-SUS TSeries不鏽鋼用先端絲攻

    ● O-TGN TSeries加大先端絲攻

    Metric Thread(M) Accuracy Shape & Dimensionsmm
    Overall LengthL Thread Lengthℓ Shank Diameterd
    M2.0x0.4 GT3 40 8 3
    M2.0x0.4 GT5 40 8 3
    M2.3x0.4 GT3 42 9.5 3
    M2.3x0.4 GT5 42 9.5 3
    M2.5x0.45 GT3 44 9.5 3
    M2.5x0.45 GT5 44 9.5 3
    M2.6x0.45 GT5 44 9.5 3
    M3.0x0.5 GT7 46 11 4
    M3.0x0.5 GT5 46 11 4
    M3.0x0.6 GT7 46 11 4
    M3.5x0.6 GT5 48 13 4
    M4.0x0.5 GT5 52 13 5
    M4.0x0.7 GT5 52 13 5
    M4.0x0.7 GT7 52 13 5
    M4.0x0.75 GT5 52 13 5
    M5.0x0.5 GT5 60 16 5.5
    M5.0x0.8 GT6 60 16 5.5
    M5.0x0.8 GT8 60 16 5.5
    M5.0x0.9 GT6 60 16 5.5
    M6.0x0.75 GT5 62 19 6
    M6.0x1.0 GT6 60 19 6
    M6.0x1.0 GT8 60 19 6
    M7.0x1.0 GT6 65 19 6.2
    M8.0x1.0 GT6 70 22 6.2
    M8.0x1.25 GT6 70 22 6.2
    M9.0x1.0 GT6 72 22 7
    M9.0x1.25 GT6 72 22 7
    M10x1.0 GT6 75 24 7
    M10x1.25 GT6 75 24 7
    M10x1.25 GT8 75 24 7
    M10x1.5 GT7 75 24 7
    M10x1.5 GT9 75 24 7
    M11x1.0 GT6 80 25 8
    M11x1.25 GT6 80 25 8
    M11x1.5 GT8 80 25 8
    M12x1.0 GT7 82 29 8.5
    M12x1.25 GT8 82 29 8.5
    M12x1.25 GT10 82 29 8.5
    M12x1.5 GT7 82 29 8.5
    M12x1.5 GT9 82 29 8.5
    M12x1.75 GT8 82 29 8.5
    M12x1.75 GT10 82 29 8.5
    M14x1.0 GT8 88 20 10.5
    M14x1.25 GT7 88 30 10.5
    M14x1.5 GT7 88 30 10.5
    M14x2.0 GT8 88 30 10.5
    M16x1.0 GT7 95 32 12.5
    M16x1.5 GT7 95 32 12.5
    M16x2.0 GT8 95 32 12.5
    M18x1.0 GT7 100 37 14
    M18x1.5 GT8 100 37 14
    M18x2.0 GT8 100 37 14
    M18x2.5 GT9 100 37 14
    M20x1.0 GT7 105 37 15
    M20x1.5 GT7 105 37 15
    M20x2.0 GT8 105 37 15
    M20x2.5 GT9 105 37 15
    M22x1.5 GT8 115 38 17
    M22x2.0 GT8 115 38 17
    M22x2.5 GT9 115 38 17
    M24x1.5 GT8 120 45 19
    M24x3.0 GT9 120 45 19
    M27x1.5 GT8 130 45 20
