UVA 6-flutes Super Micro Grain End Mills

UVA 6-flutes Super Micro Grain End Mills
    Enlargement
    Product Name : UVA 6-flutes Super Micro Grain End Mills
    Product Description

    FEATURES:

    Goof at High Speed and hardness cutting. It may achieve best above HRC60. With benefits of fracture resistance and strong edge.

    Product Introduction

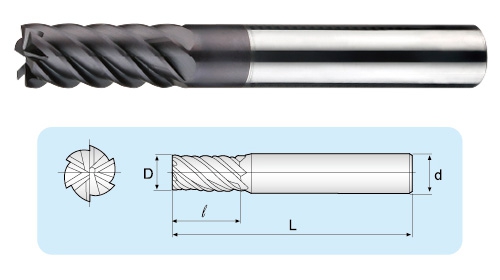

    Type No Diameter(D) Flute Length (l) O. A. L.(L) Shank Dia(d) Price
    UVA0201046 2.0 5.0 50 4 625
    UVA0301046 3.0 7.5 50 4 625
    UVA0401046 4.0 10.0 50 4 625
    UVA0501066 5.0 12.5 50 6 710
    UVA0601066 6.0 15.0 50 6 710
    UVA0603066 6.0 26.0 75 6 1065
    UVA0802086 8.0 20.0 60 8 1420
    UVA0804086 8.0 35.0 100 8 2370
    UVA1003106 10.0 25.0 75 10 2370
    UVA1004106 10.0 40.0 100 10 3135
    UVA1203126 12.0 30.0 75 12 2955
    UVA1204126 12.0 50.0 100 12 3940
    UVA1605166 16.0 50.0 150 16 12520
    UVA2006206 20.0 50.0 150 20 17440



    Applicability Work Material
    ★ ★ ★ Steel,Carbon steel S15C
    ★ ★ ★ Steel,Carbon steel S45C
    ★ ★ Hardened S45C
    ★ ★ Steel,Carbon steel S75C
    ★ Hardened S75C
    ★ ★ ★ Low allow steel SCM, SNCM
    ★ ★ Hardened SCM, SNCM
    ★ Hardened SCM, SNCM
    ★ Hardened SCM, SNCM
    ★ ★ ★ High allow steel SKD,SKT,SKH
    ★ Hardened SKD,SKT,SKH
    ★ ★ ★ Stainless steel SUS403
    ★ ★ ★ Stainless steel SUS403
    ★ ★ ★ Stainless steel SUS304, SUS316
    ★ ★ Cast iron
    ★ ★ Nodular cast iron
    ★ Exotic material
    ★ Aluminum
    ★ Aluminum alloy

    ★ ★ ★Excellent     ★ ★ Good     ★General
